Central Carolina Scale sells and services Doran Stainless Steel
Scales

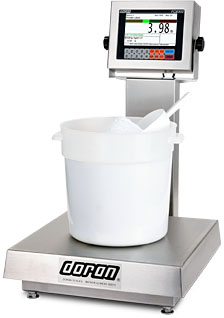

Doran FC6300 Formula Control System
What would it
be like to be in total control? Imagine saving at
least 1.8% of your yearly minor ingredient costs. What
would that be worth to you? Picture having an extra supervisor watching
over your employees’ shoulders monitoring and controlling the
formulation process while the employee hand scales ingredients. What
effect would that have on your product consistency and production
efficiency? Doran’s FC6300 Formula Control System puts you in
total control and can pay for itself in just four months or less.
In fact, often after learning about the FC6300, customers say:
“I
could benefit from a scale like this, but I never thought to
call you to see if such a scale existed”
How Much
Savings Could You Achieve?
ROI
Calculators
In today’s
competitive marketplace, reducing production costs is a sure path
to greater profits. Doran’s Formula Control has been guiding
production plants along that path with ingredient
savings of at least 1.8% - even more. Combine lower ingredient
costs with the elimination of the money wasted on bad batches and
you can understand why successful companies are investing in the FC6300
Formula Control System.
Take
a look at the savings one company experienced with the FC6300.
This plant realized that improving the performance
of their formula scaling could lead to a significant impact
on profitability. Additionally, they were averaging one bad
batch a week due to errors that were traced back to the scaling
process. They turned to Doran Scales to provide the solution
to reduce costs from wasted ingredients and bad batches - that
solution was the FC6300 Formula Control System.
Return
on investment due to ingredient cost savings was achieved in
just four months and the net one year effect on profit margin
was $27,068.71. It’s no wonder
that plant managers at this company’s other location suddenly
became interested in the FC6300 Formula Control System.
Controls
CLEAR, ENTER, START/STOP, LOT ID, RECALL, ZERO, MENU, F1, and
Alphanumeric Keypad
Power
115 VAC, 50/60 Hz (230 VAC Optional)
Communications:
Standard: USB Thumbdrive & Wired Ethernet Optional: Wireless
Ethernet
Construction
304 Stainless Steel Steel (16 Gauge)
Dimensions
8 " H x 10" W x 3.75" D (Indicator)
Warranty
Two Year Mfg.
Achieve
Total Control of Your Formulas
What
would it be like to be in total control? Imagine saving at least
1.8% of your yearly ingredient costs. What would that be worth
to you?
Consistent
Batches - Guaranteed
Reduction of ingredient costs is easy to see, but the costs associated
with bad batches are often overlooked. Like a dripping faucet, those
bad batches can drain your plant’s profits a little at a time.
Production downtime to clean production lines, discard the bad batch,
along with cost of wasted ingredients can add up. Our field studies
show that bad batches cost a company on average $837per incident. With guaranteed consistent
batches, your plant will run more efficiently - adding to your profitably.
By prompting the
user through the formula, the correct ingredients are accurately scaled
every time. Each ingredient of the formula is weighed within a tolerance

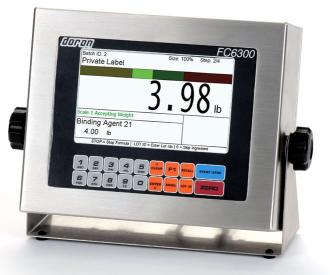

that you define. The color-coded Accu-Track display on the bright
LCD screen ensures ingredients being added are within those tolerances.
Each step of the formula is clearly labeled with batch ID, batch name,
the step number, ingredient name, target weight and actual weight.
Accurate scaling can be achieved with or without experienced production
employees.
Ensures Employee
Accountability

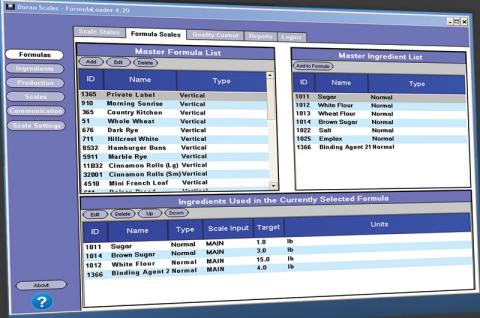

Formula Loader is a standard component of the FC6300 Formula Control
system. This Windows compatible software is used to configure formulas
as well as to provide production reports. Standard Formula Loader
reports can be used to evaluate scale operator efficiency and ingredient
usage. Using scale operator ID’s, the FC6300 tracks when a user
logs in and out of the scale. Management can easily determine how
long the scale operators are taking to prepare each formula and how
accurately it was done. It's like having the plant manager watching
over your employees' shoulders 24/7.
Fast, Accurate,
and Easy Lot Traceability
Scaled formulas are saved as a digital record, far more accurate than
the typical handwritten records used on most plant floors today. The
digital format makes searching and analyzing production data fast
and accurate. With a click of a mouse button, all batch data of a
specific lot ID can be retrieved.
Easily add a Second Base for Fine Ingredient Scaling
to your FC6300 system
Baking
is where this product was developed, but you can have success
in just about any industry
* Tire Manufacturing
* Plastics Manufacturing
* Grout Manufacturing
* Flavoring and Seasonings
* Marinades and Brines
* Agricultural Chemical Mfg.
Model
Number
Capacity
Platform
FC63100SP/1818
100
x 0.01 lb
18"
x 18"
FC63150SP/1818
150
x 0.01 lb
FC63250SP/1818
250
x 0.02 lb
FC63500SP/1818
500
x 0.05 lb
FC63100SP/1824
100
x 0.01 lb
18"
x 24"
FC63150SP/1824
150
x 0.01 lb
FC63250SP/1824
250
x 0.02 lb
FC63500SP/1824
500
x 0.05 lb
FC63100SP/2424
100
x 0.01 lb
24"
x 24"
FC63150SP/2424
150
x 0.01 lb
FC63250SP/2424
250
x 0.02 lb
FC63500SP/2424
500
x 0.05 lb
Options
IP65 Rated Heavy Duty Barcode Scanner
Wireless Ethernet
30" or 40" Column
Weatherproof Ethernet Junction Box
Waterproof Wireless PC Keyboard
Thermal Label Printer
Production Scheduler Module
Production Reporter
SQL Database Module
QC Weigh Software
Second Base for Fine Ingredient Scaling
A FC6300 system
can save you tens of thousands of dollars in minor ingredients
per year,
with a product that will pay for itself in a few weeks or
months. We know this because we have done field studies that
confirm that manufacturers save at least 2.1% in minor ingredient
costs alone.
And,
controlling your minor ingredients will have a significant
impact on your plant. It will provide consistent product quality
while collecting data to hold your employees accountable.
Not only that, but this system virtually eliminates bad batches
due to minor ingredients, further adding to your savings.
For more info or to place
an order, call (919) 776-7737 or click above
