Doran 8000XL Washdown Safe Stainless Steel Bench Scale
Over 60 Hours
of Battery Life
The internal rechargeable battery and charger provides a simple to
maintain scale that can fully charge the battery in five hours, even
while the scale is being used.
Easy to Operate
The basic controls are all here - Zero, Units, and Print, you can't
get any simpler than that. The benefit to you is a scale that is easy
to operate and train employees to use - reducing operator error.
1000% Overload
Base
No...that's not a typo! The Doran unique "Quad-Spring" design
protects the sensitive load cell from shock and overload damage. Protected
to a maximum of 10 times the base load rating sets the new industry

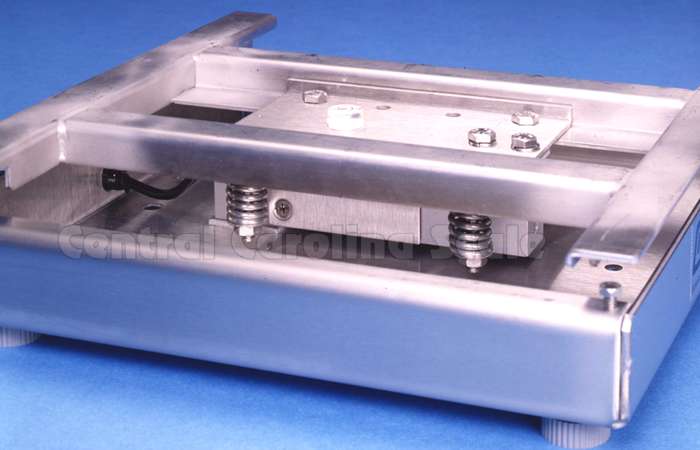

standard - a feature only available from Doran. Close
up of the DXL quad spring protection base
Powerful Excel
Features & Options
Take the 8000XL to new levels with the enhanced features made possible
with the new Excel Series Design. Choose from a variety of communication
options which include USB. Control a mixing or batching operation
by simply adding setpoints and relays.
Model 8000XL Bench Scale
Features and Specifications
|
Standard
Features
Super
tough "Guardian" control panel and case.
Low profile shock resistant base.
The sealed self-contained battery provides at least 60 hours
of continuous use...even more when used in the "Auto Shut-Off"
mode.
Built-in battery charger takes only 4 hours to recharge a fully
depleted battery. The scale can be used while recharging.
Construction of 304 Stainless Steel for easy clean up and long
life. (Now w/ IP69K
Rating!)
Displays in lb, kg, g, oz, or lb & oz.
A bright red LED display.
USDA approved & NTEP certified.
2 Year Limited Mfg. Warranty
Specifications
Max.
Capacities: 5 lb to 200 lb
Enclosure: 6.25" h x 10" w x 3.5" d
Platform Sizes: 10" x 10", 12" x 12" or
15" x 15"
Power: 115 VAC (50/60HZ, 10 watts)
NTEP: nmax=5000d
|
Standard Precision Resolution Models
|
Model
|
Capacity
|
|
lb
|
kg
|
Oz
|
Platform Size
|
|
8002XL
(non NTEP)
|
2
x 0.0005
|
0.9
x 0.2g
|
32
x 0.01
|
10"
x 10"
|
|
8005XL
|
5
x 0.001
|
2.3
x 0.5g
|
80
x 0.02
|
|
8010XL
|
10
x 0.002
|
4.5
x 1g
|
160
x 0.05
|
|
8025XL
|
25
x 0.005
|
11.3
x 2g
|
400
x 0.1
|
|
8050XL
|
50
x 0.01
|
22.7
x 5g
|
800
x 0.2
|
| |
|
|
|
|
|
8050XL/12
|
50
x .01
|
22.7
x 5g
|
800
x .2
|
12"
x 12"
|
|
8100XL/12
|
100
x .02
|
45
x 10g
|
1600
x .5
|
| |
|
|
|
|
|
8050XL/15
|
50
x .01
|
22.7
x 5g
|
800
x .02
|
15"
x 15"
|
|
8100XL/15
|
100
x .02
|
45
x 10g
|
1600
x .5
|
|
8200XL/15
|
200
x .05
|
91x
20g
|
3200
x 1
|
Super
Precision Resolution Models (Non NTEP, Not Legal for Trade)
|
Model
|
Capacity
|
|
lb
|
kg
|
Oz
|
Platform Size
|
|
8002XLSP
|
2
x 0.0002
|
0.9
x 0.1g
|
32
x 0.005
|
10"
x 10"
|
|
8005XLSP
|
5
x 0.0005
|
2.3
x 0.2g
|
80
x 0.01
|
|
8010XLSP
|
10
x 0.001
|
4.5
x 0.5g
|
160
x 0.02
|
|
8020XLSP
|
20
x 0.002
|
9.1
x 1g
|
320
x 0.05
|
|
8050XLSP
|
50
x 0.005
|
22.7
x 2g
|
800
x 0.1
|
|
|
8050XLSP/12
|
50
x .005
|
22.7
x 2g
|
800
x .1
|
12"
x 12"
|
|
80100XLSP/12
|
100
x .01
|
45
x 5g
|
1600
x .2
|
|
|
8050XLSP/15
|
50
x .005
|
22.7
x 1g
|
800
x .1
|
15"
x 15"
|
|
8100XLSP/15
|
100
x .01
|
45
x 5g
|
1600
x .2
|
|
8200XLSP/15
|
200
x .02
|
91
x 10g
|
3200
x .5
|
|
Options
Remote Foot
Switch
Stainless Steel Load Cell
Cable Disconnect
RS-232 Data Output
230 VAC Operation
USB
Ethernet
Column
|
For more info or to place
an order, call (919) 776-7737 or click above
Specifications
subject to change without notice
