Central Carolina Scale sells and services Cardinal Detecto Bench Scales

Deteco AS-330D Intelligent Scale Base with Remote Display

Computer Interface Scale

This "legal for trade" economical Intelligent Scale Base has a big weighing capacity (150 lb), yet is still accurate to one half ounce. The display may be mounted on the scale, wall, or counter. The modular serial port allows the scale to be interface with a personal computer. Comes with 6-digit, 1/2" (13mm), 7-segment LED with 6' (1.8m) cable and mounting bracket, and includes 12' (3.7m) computer interface cable.

AS-330D Specifications
Capacity:	150 lb x .05 lb or 0-100 lb x .5 oz or 100-150 lb x 1 oz
Display:	6 digit, 1/2" (13mm) 7-segment LED
Power:	120 Volt AC adapter with 12 volt DC
Shipping Weight:	22 lb / 10 kg
Platform:	12" x 14" / 305mm x 356mm stainless steel
Scale Dimensions:	12" L x 14" W x 3.5" H / 305mm L x 356mm W x 89mm H
Display Dimensions:	4.5" W x .875" D x 2.5" H / 114mm W x 22mm D x 64mm H
Display Cable:	6' (1.9m)
Computer Interface Cable:	12' (3.7m)
Interface:	RS-232 serial, 2400-19200 Baud, includes 12' (3.7m) interface cable

OPTIONS

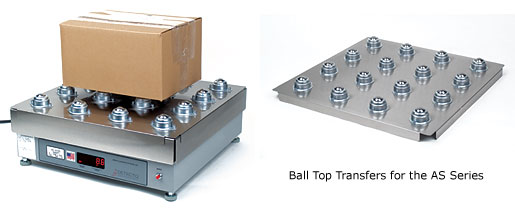

balltop platter

Ball Top Transfers

Model
Description

Ball Top Height

Shipping Weight

BT-1214
Ball top transfer for 12" x 14" platform

1.32" / 33mm from platform

9 lb
