Central Carolina Scale sells and services A & D (AND) Bench Scales

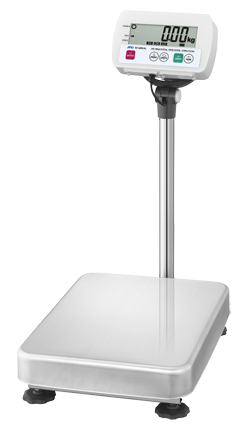

SC Series Washdown Scales

The SC Series bench scale from A&D Weighing is constructed with a completely sealed indicator and awashdown base that meets IP68 standards. It provides exceptional performance with a stabilization speed of just 1 second!

Product Features
• Stainless Steel Construction

• IP68 Dust and water-proof (submersible)

• 4500 hours of battery life (battery power only)

• Supersized LCD of 39 mm character height

• Multiple weighing units (kg, lb, oz, and pcs)

• Stabilization of 1 second

• Waterproof and corrosion-resistant load cell

MODEL		SC-30KAM	SC-60KAM	SC-150KAM	SC-60KAL	SC-150KAL
lb	Capacity	66	130	330	130	330
lb	Min. Display	0.02 0.01*	0.05 0.02*	0.1 0.05*	0.05 0.02*	0.1 0.05*
oz	Capacity	1050	2100	5200	2100	5200
oz	Min. Display	0.5 0.2*	1 0.5*	2 1*	1 0.5*	2 1*
kg	Capacity	30	60	150	60	150
kg	Min. Display	0.01 0.005*	0.02 0.01*	0.05 0.02*	0.02 0.01*	0.05 0.02*
Sample Qty (for counting)		5 pieces (can be changed to 10,20, 50 or 100)
Maximum count		60,000 pcs	60,000 pcs	75,000 pcs	60,000 pcs	75,000 pcs
Minimum unit weight		0.0005 kg	0.001 kg	0.002 kg	0.001 kg	0.002 kg
Repeatability (Std. deviation)		0.005 kg	0.01 kg	0.02 kg	0.01 kg	0.02 kg
Linearity		±0.01 kg	±0.02 kg	±0.05 kg	±0.02 kg	±0.05 kg
Sensitiviy drift		±20 ppm / °C (5°C to 35°C / 41°F to 95°F)
Display		7 segment LCD display (character height 39 mm)
Dispay update		10 times per second
Operating condtions		-10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non-condensing)
Power supply		Size D batteries x6, Approximately 4,500 hours using alkaline batteries (models are battery power only)
Weighing pan size		300 x 380 mm / 11.8 x 15 in.			390 x 530 mm /15.4 x 20.9 in
Dimensions		300(W) x 543(D) x 717(H)mm / 11.8(W) x 21.4(D) x 28.2(H) in.			390(W)x 688(D)x 717(H)mm/ 15.4(W)x 27.1(D)x 28.2(H)in
Weight (approximetely)		26.5 lb / 12 kg			35.3 lb / 16 kg
Calibration weight*		60 lb / 30 kg	120 lb / 60 kg	300 lb /150 kg	120 lb / 60 kg	300 lb /150 kg
