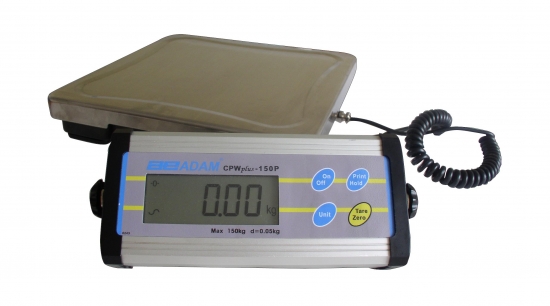

Adam Equipment CPWplus Industrial Scales

The CPWplus line of industrial scales offers an outstanding selection of models with capacities to meet more of your applications. With its ease of use and affordability, the CPWplus combines reliability and durability for weighing tasks in almost every immaginable situation.

Six different capacities make these industrial scales ideal for material testing, shipping/receiving departments, general office use, industrial, or agricultural applications. These can even be used in the health care industry. Add the optional carry case and you have a great scale system for high school wrestling coaches and teams.

CPWplus has simple operation and set up. Standard features include: color-coded keys, tare function and selectable weighing units. Hold function makes scales more user friendly. Digital calibration easily from keypad. Also includes indicator for low battery, stable, zero, net weight and hold. Low-profile design, splashproof keypad and wall-mount bracket for the indicator make this an all around winner. Also includes RS-232 bi-directional interface for computer/printer connection.

Models Available

Model	Capacity	Readability	Platform size
CPWplus 6	13 lb / 6000g	0.005 lb / 2g	11.8 x 11.8″ inches
CPWplus 15	33 lb / 15kg	0.01 lb / 5g	11.8 x 11.8″ inches
CPWplus 35	75 lb / 35kg	0.02 lb / 10g	11.8 x 11.8″ inches
CPWplus 75	165 lb / 75kg	0.05 lb / 20g	11.8 x 11.8″ inches
CPWplus 150	330 lb / 150kg	0.1lb / 50g	11.8 x 11.8″ inches
CPWplus 200	440 lb / 200kg	0.1lb / 50g	11.8 x 11.8″ inches

Specifications

	CPWplus 6	CPWplus 15	CPWplus 35	CPWplus 75	CPWplus 150	CPWplus 200
Maximum capacity	13lb / 6000g	33lb / 15kg	75lb / 35kg	165lb / 75kg	330lb / 150kg	440lb / 200kg
Readability	0.005lb / 2g	0.01lb / 5g	0.02lb / 10g	0.05lb / 20g	0.1lb / 50g
Tare range	Full
Repeatability	0.005lb / 2g	0.01lb / 5g	0.02lb / 10g	0.05lb / 20g	0.1lb / 50g
Linearity (±)	0.01lb / 4g	0.02lb / 10g	0.04lb / 20g	0.1lb / 40g	0.2lb / 100g
Typical stabilization time	2 seconds
Units of measure	kg, lb, oz, lb:oz
Interface	RS-232 bi-directional Interface
Operating temperature	0° - 40°C / 32° - 104°F
Power supply	6 AA size non-rechargeable batteries in a compartment located in the base or 12VAC 150mA from external adapter
Calibration	Automatic External with user selectable calibration mass
Display	LCD with minimum 25mm digits with weight legends for kg, lb, oz and low battery, stable, zero, net weight and hold symbols, as well as ability to display lb and oz together
Housing	Indicator- Aluminium, Platform- Mild Steel base and stainless steel pan
Pan size	11.8×11.8″ / 300×300mm
Overall dimensions (w×d×h)	11.8 x 11.8 x 2″ / 300 x 300 x 50mm
Net weight	4kg

Accessories

No. 7954 Hard Carry Case with Lock and Strap

Please call (919) 776-7737 or click above for more information or to place an order today!
