Adam Equipment Industrial Scales and Balances

Adam Equipment's range of industrial scales and balances consists of high quality top-loading balances, as well as a series of floor and bench scales covering a wide range of weighing and counting applications. They are also able to supply platforms for a wide range of applications that can be used stand-alone or in conjunction with one of the Adam indicators.

CFCa Floor Counting Scales [Capacity: 130lb-660lb]
CFCa floor counting scales have a large platform and are designed for industrial applications. They are supplied with an internal rechargeable battery.

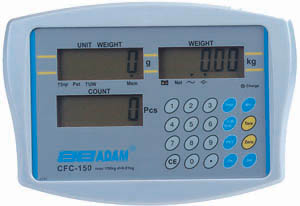

CFCa counting scales cfc display

Brochure (pdf file)

Counting and weighing facility
Automatic Memory accumulation
Pre-set counting with alarm
Full range tare- both automatic and pre-set
RS-232 bi-directional Interface (optional)
Over-load protection
Large backlit LCD displays
Rechargeable battery with up to 70 hours of operation
Power Supply Adapter supplied as standard
Large stainless steel platform
Internal count 1:400,000

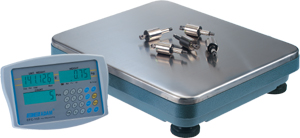

count with or without the column

CFC 130a

CFC 330a

CFC 660a

Maximum capacity
130 lb / 60kg

330 lb / 150kg

660 lb / 300kg

Readability
0.01 lb / 5g

0.02 lb / 10g

0.05 lb / 20g

Resolution
1: 12000

1:15000

Internal counting resolution
1:400,000

Tare range
-130 lb / -60 kg

-330 lb / -150 kg

-660 lb / -300 kg

Tare functions
Full

Repeatability
0.01 lb / 5 g

0.02 lb / 10 g

20 g

Linearity (±)
10 g

0.04 lb / 20 g

0.1 lb / 40 g

Typical stabilization time
2 seconds typical

2 seconds

Units of measure
Lb / kg

Interface
RS-232 bi-directional Interface (Optional)

Operating temperature
32°F - 104°F / 0°C - 40°C

Power supply
9 VDC, 800 mA from external adapter Internal rechargeable battery (up to 70 hours operation)

Calibration
Automatic External

Display
3 x 6 digits LCD digital displays

Housing
Indicator: ABS Plastic, Top Pan: Stainless Steel, Base: Cast Aluminium

Pan size
16.7×20.7″ / 425×525mm

Overall dimensions (w×d×h)
16.7×27.6×37.4″ / 425×700×950mm

Net weight
33 lb / 15 kg

Applications
General Purpose Floor Counting and Weighing Scale

Functions
Weighing, Parts Counting, Memory Accumulation, Pre-set count with alarm
